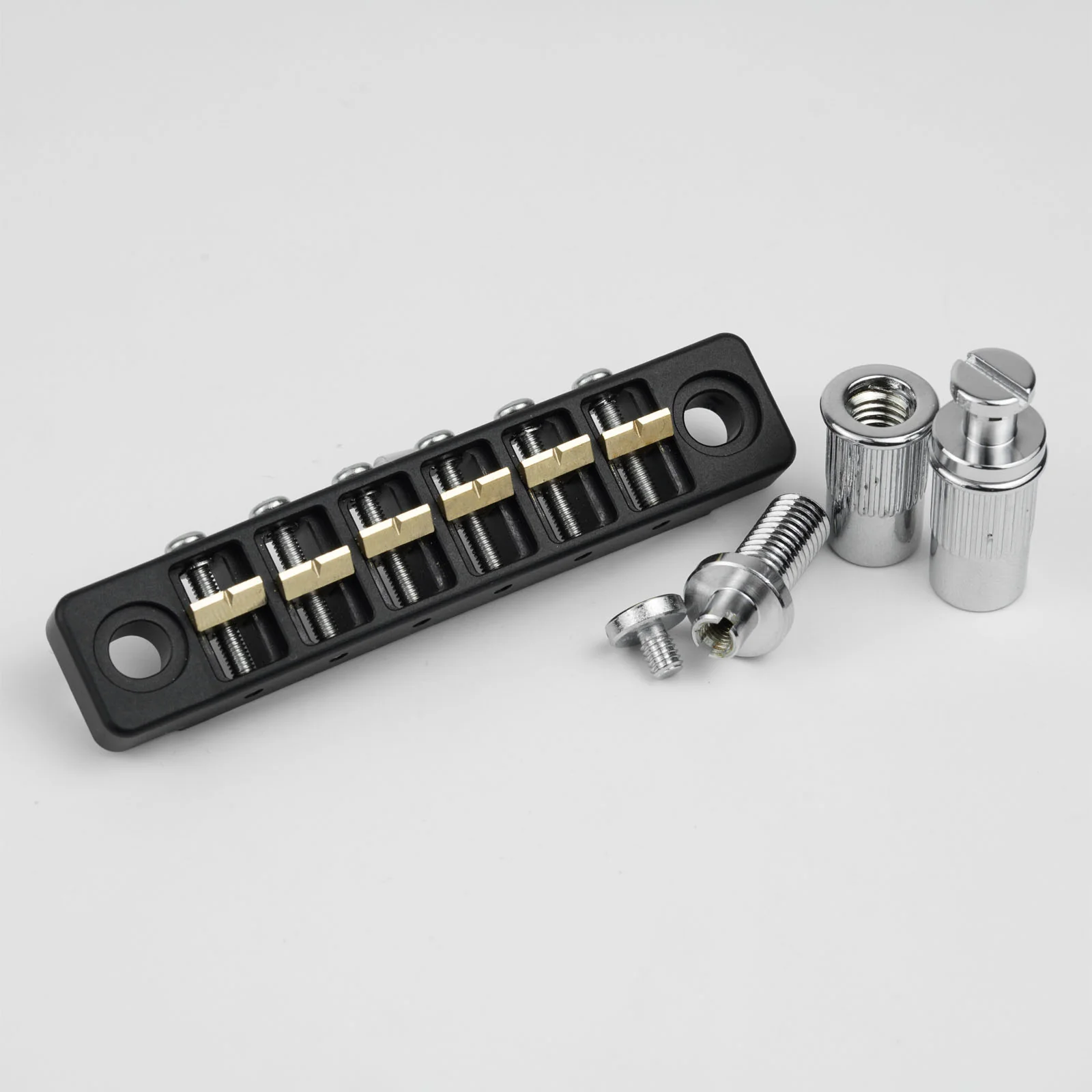

Upgrade your 6-string electric guitar with a lightweight, stable Tune-O-Matic style bridge. This CNC-machined aluminum alloy bridge features brass saddles, M8 stud mounting, and precise spacing for non-tremolo electric guitar bridge replacement projects.

Key Features

• CNC-machined aluminum body: Built with an aerospace aluminum alloy bridge body for a lightweight and stable hardware upgrade.
• Brass saddles: Provides durable string contact and reliable support for regular playing and replacement use.
• Tune-O-Matic fixed bridge design: Suitable for 6-string electric guitars using a non-tremolo Tune-O-Matic style bridge setup.
• Fitment reminder: Please confirm your post spacing, M8 stud thread, radius, and overall bridge size before ordering.

Technical Specifications

SKU / Model	GMA-015A
Product Type	Tune-O-Matic Bridge
Bridge Type	Fixed Non-Tremolo Bridge
Suitable For	6-String Electric Guitar
String Spacing	10.6mm
E-to-E String Spread	53mm
Post Spacing	74–75.4mm
Stud / Thread Size	M8
Stud Height	17.7mm
Radius	R364
Bridge Body Material	CNC-Machined Aluminum Alloy
Saddle Material	Brass
Overall Length	90mm
Bridge Width	18mm

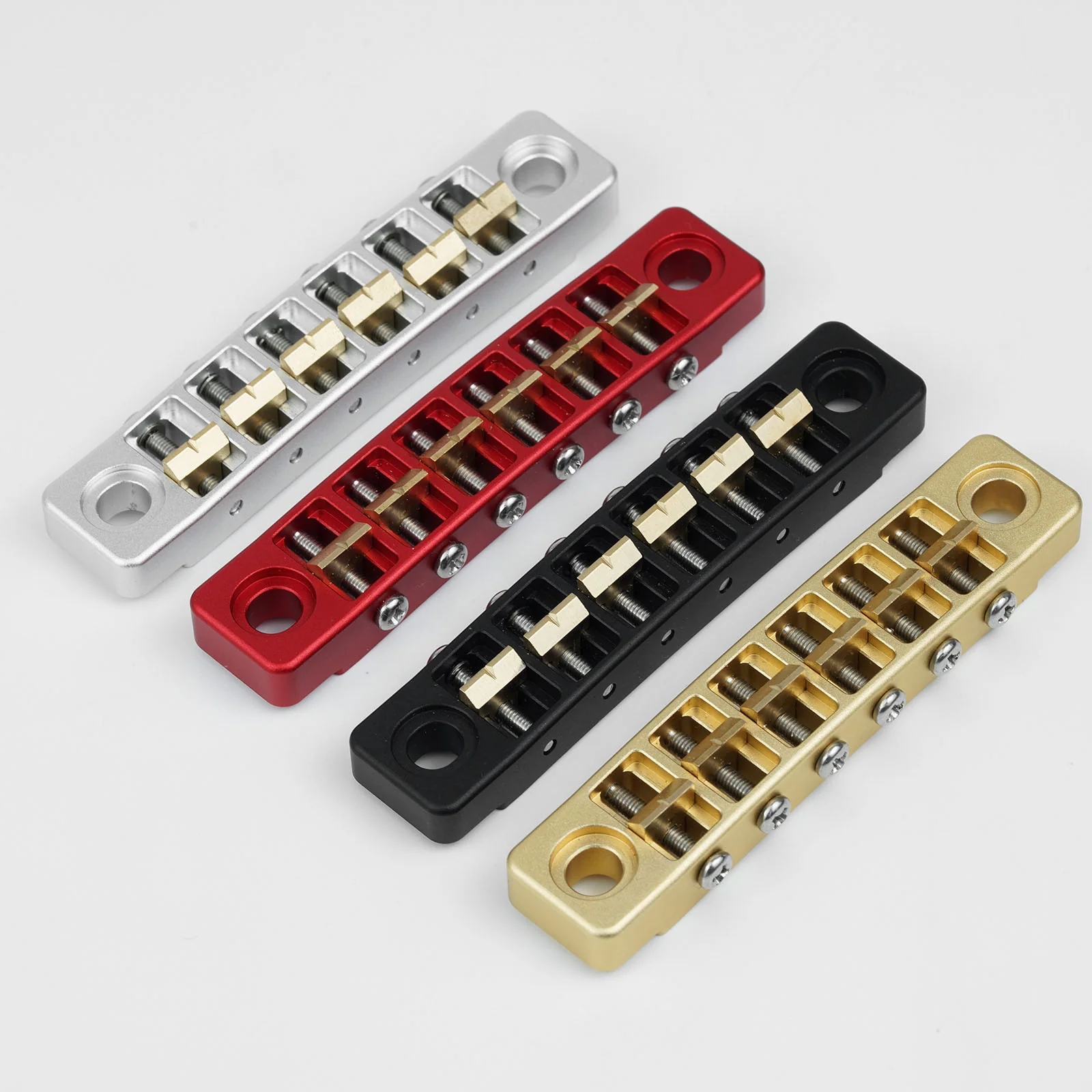

Color Options	Black, Gold, Chrome, Red

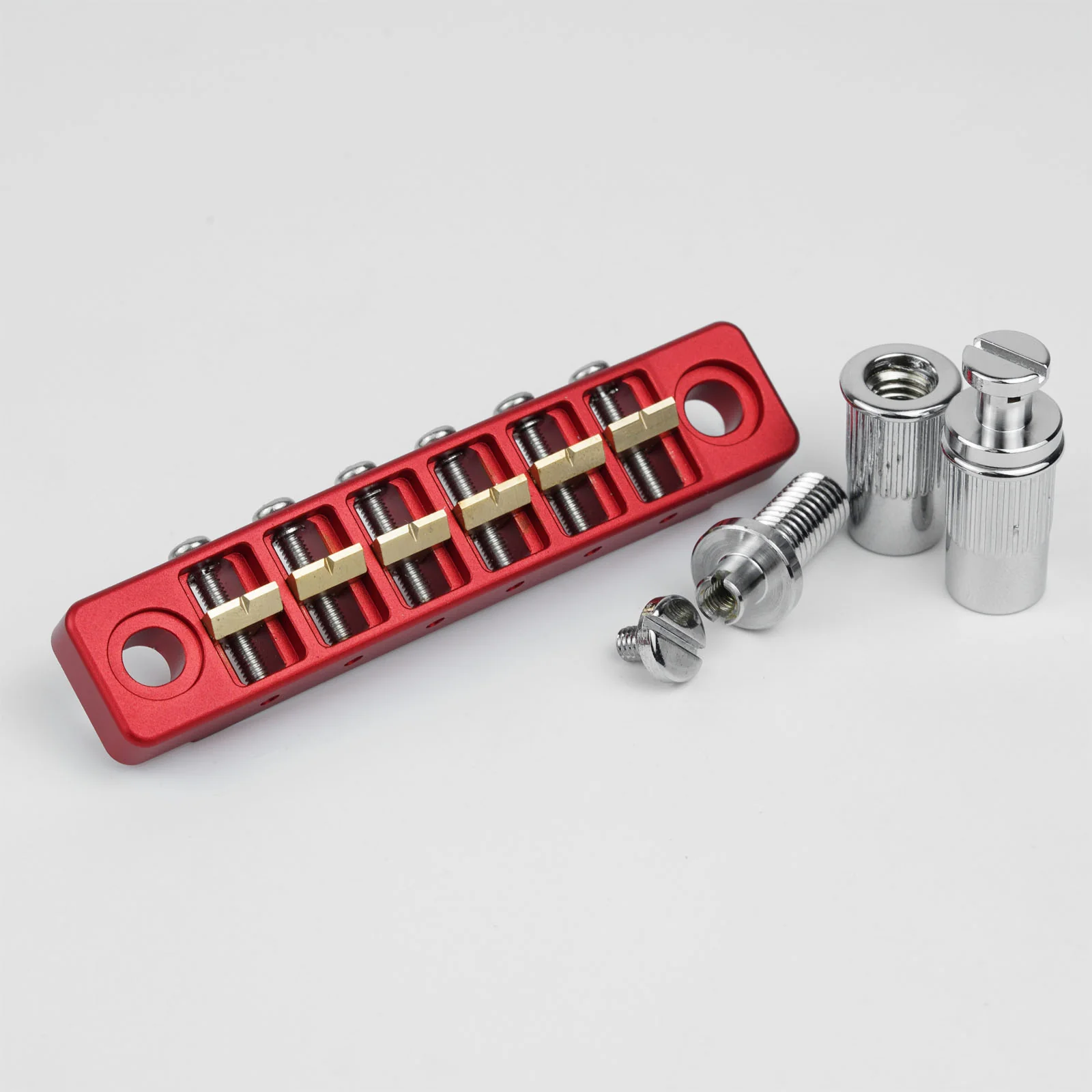

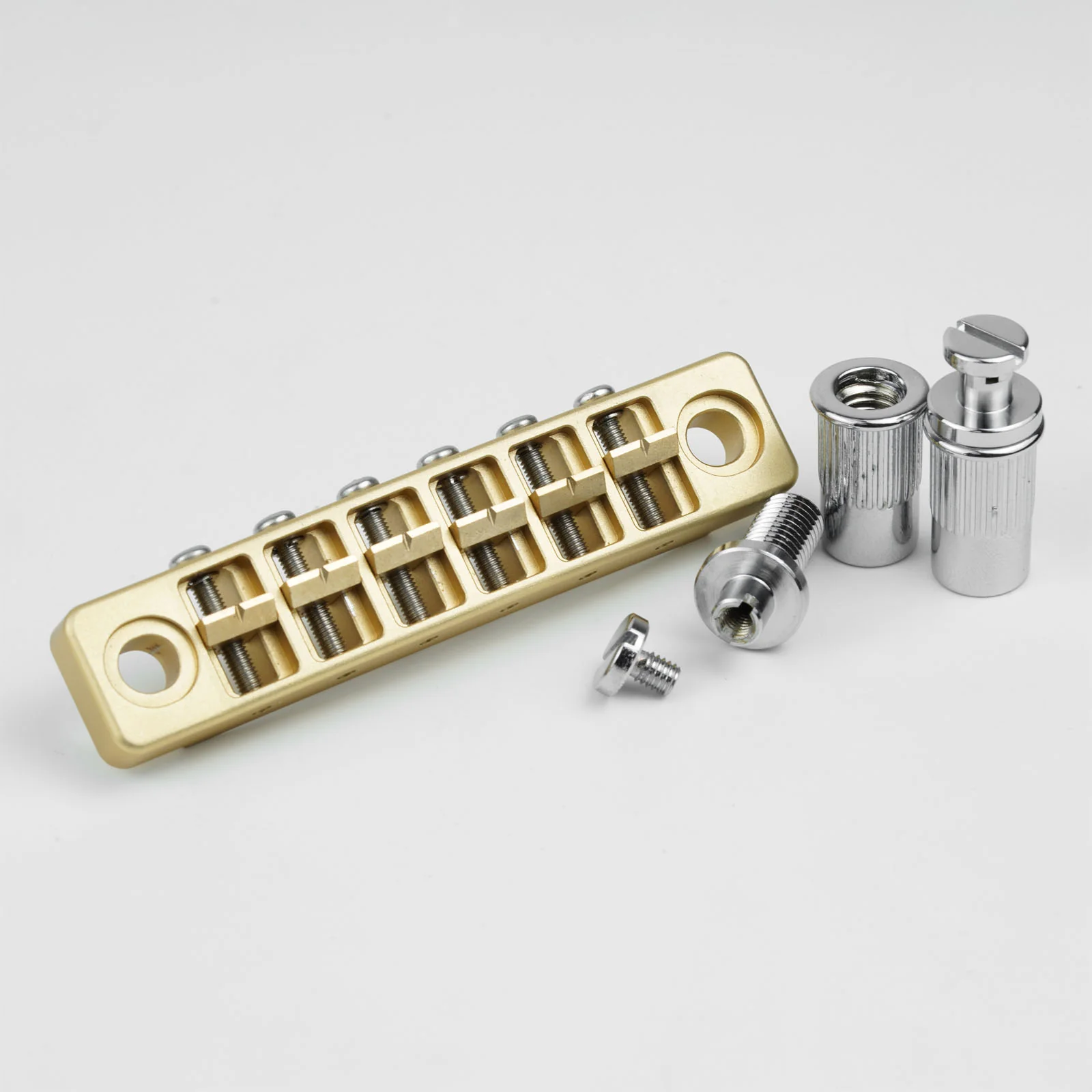

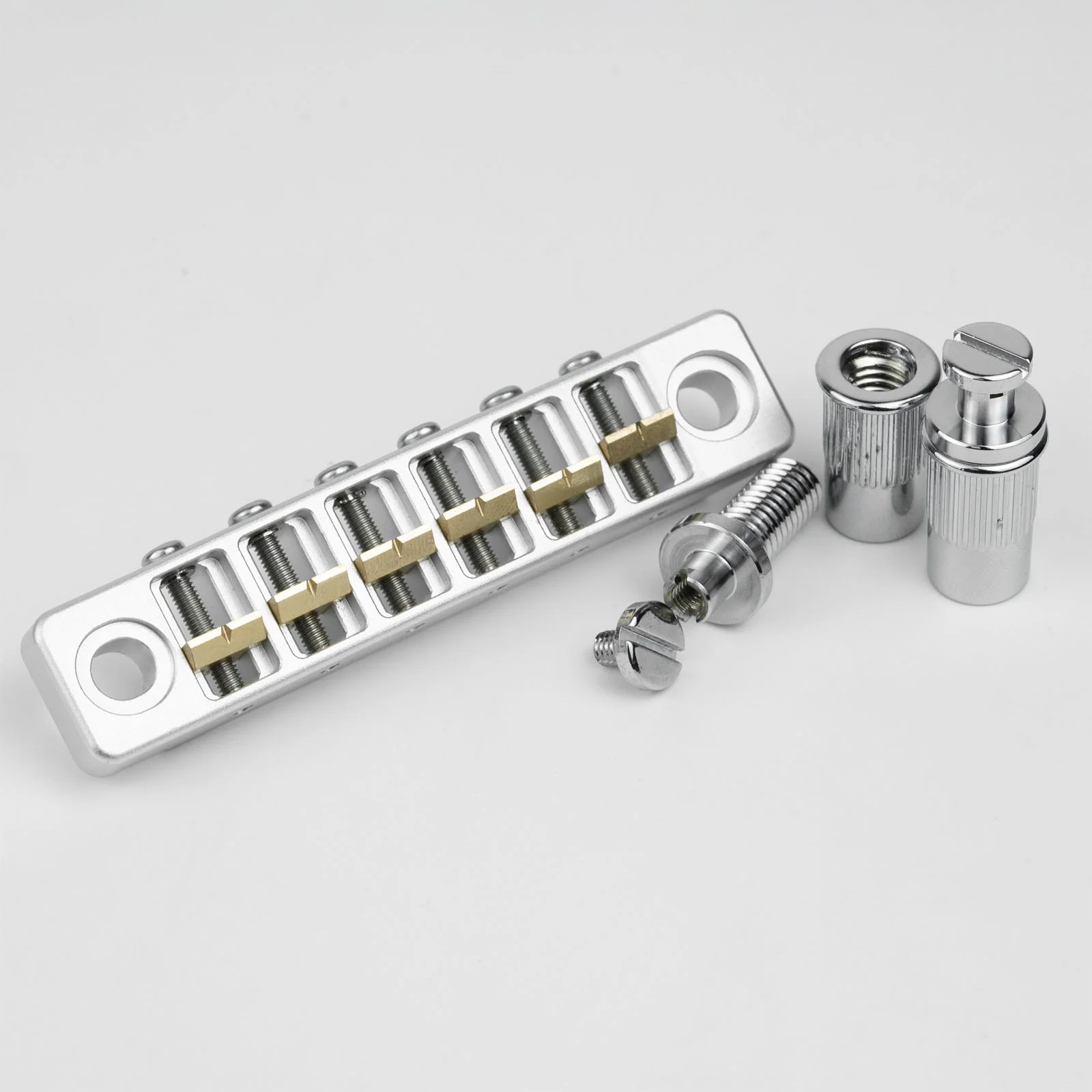

Package Includes	1 Bridge with Mounting Hardware Set

Compatibility Notes

Important: Please check the measurements of your guitar before ordering. Minor modification may be required depending on the guitar model, production year, or existing hardware.

Package Includes

• 1 x guitar bridge
• 1 x mounting hardware set

Installation Note

Before installation: Compare the product dimensions with your original part to confirm compatibility. Tune-O-Matic bridges can vary by post spacing, stud thread, radius, and bridge footprint.

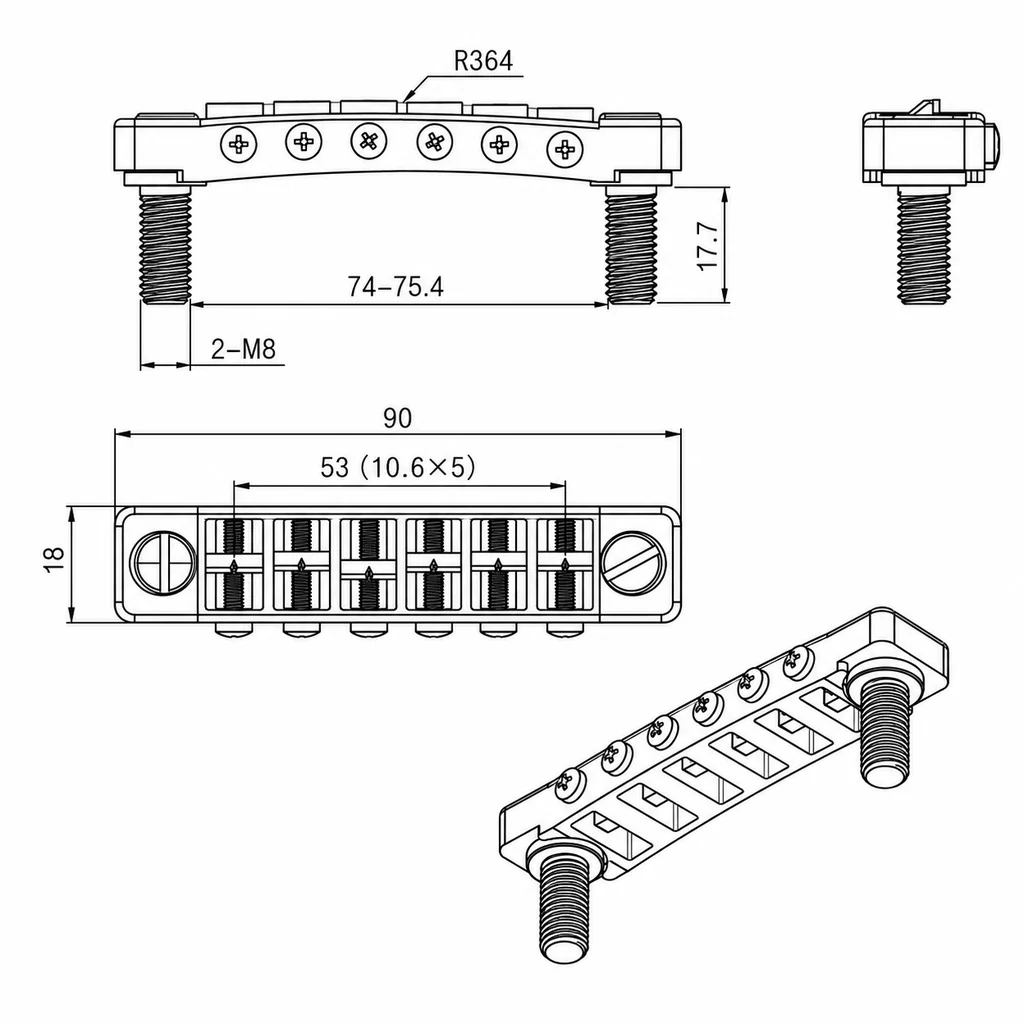

Size Reference

Important: Please refer to the size chart below and compare all dimensions with your original part before ordering.
