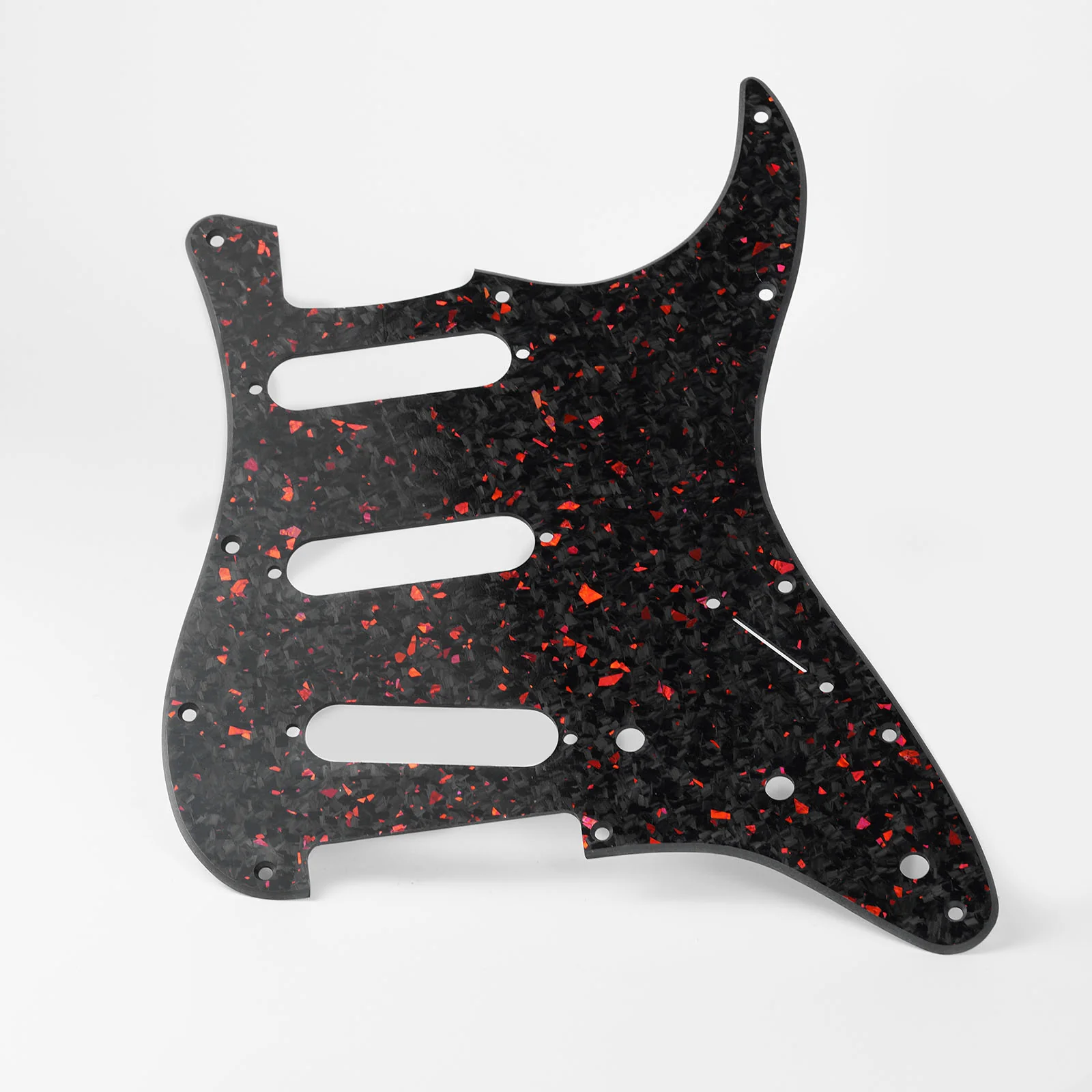

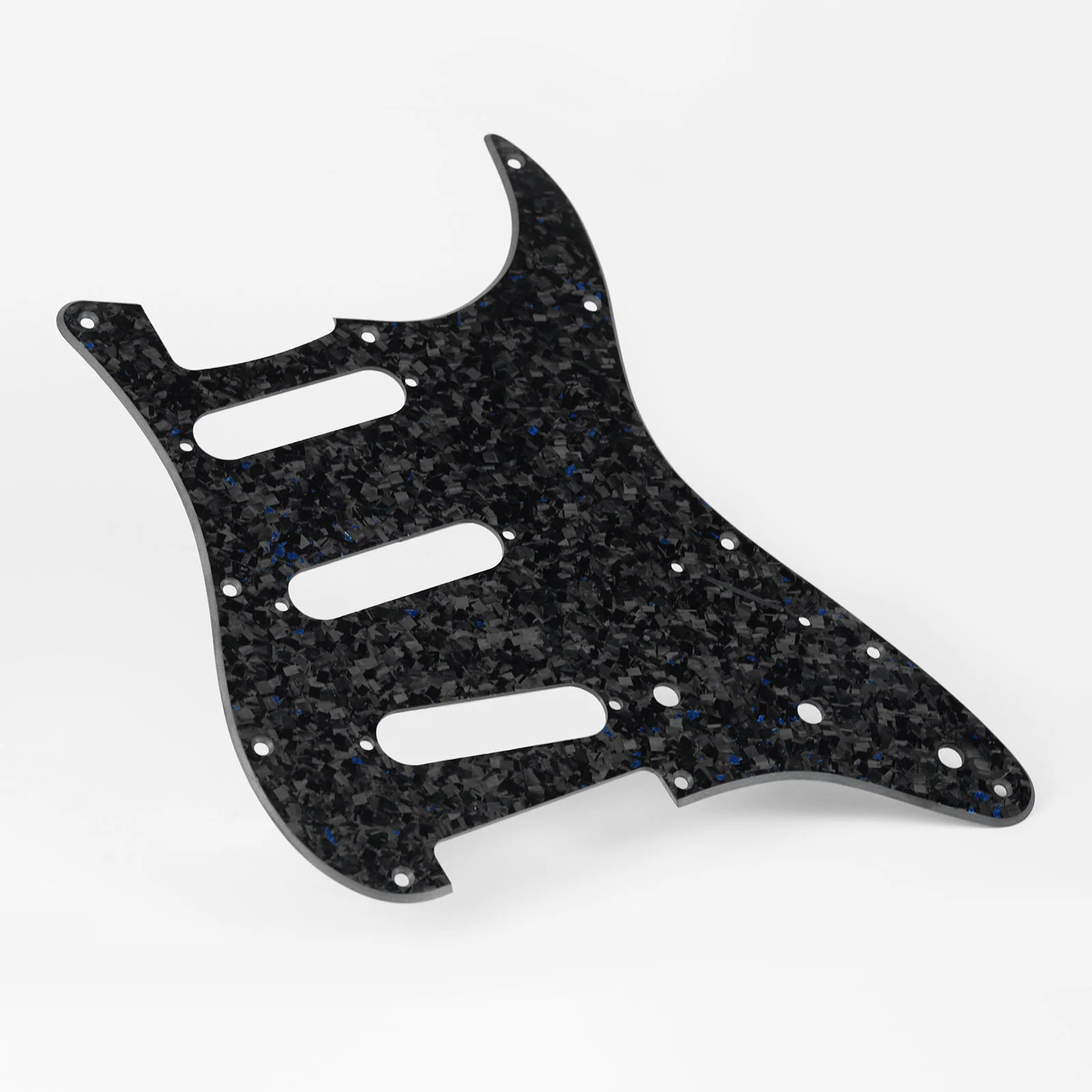

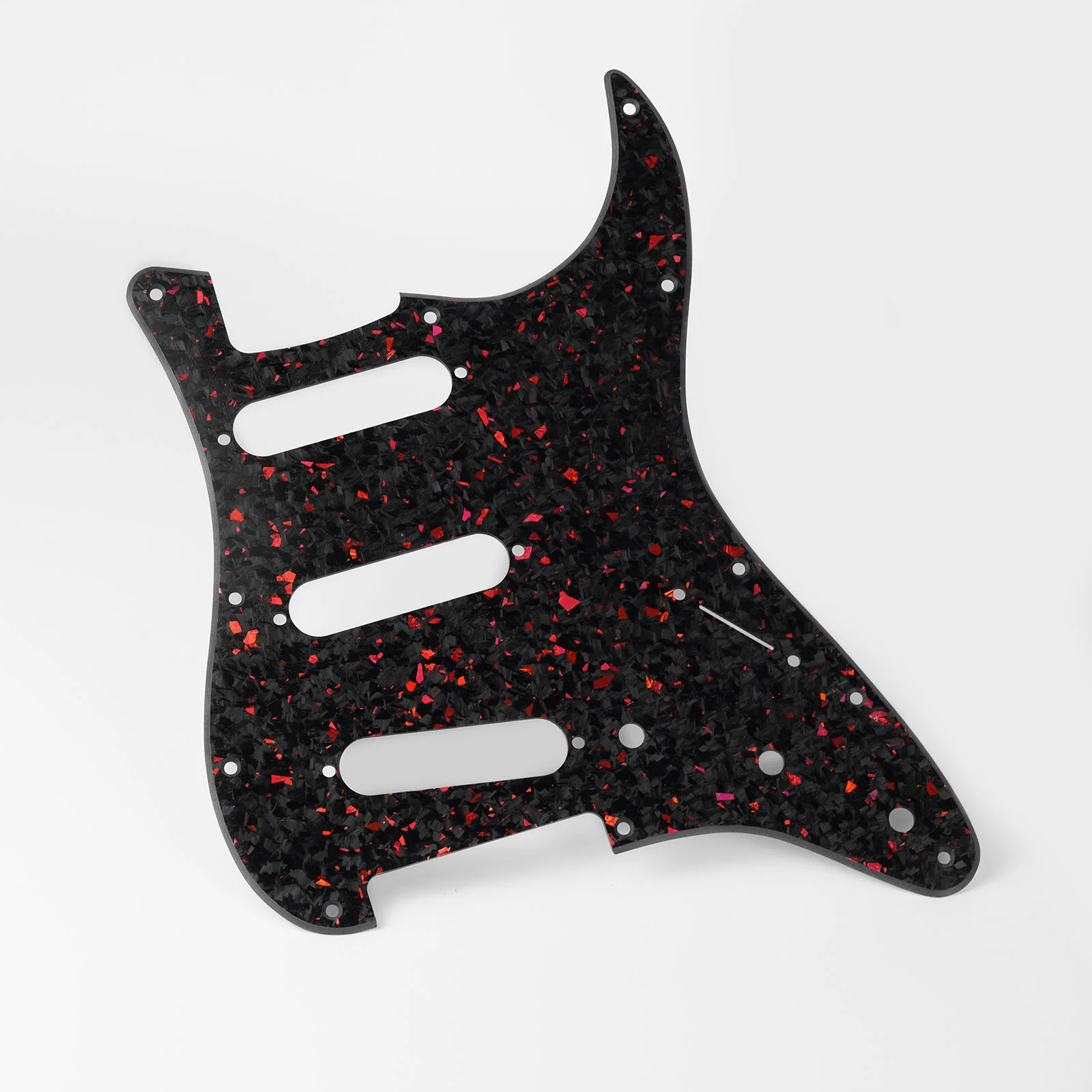

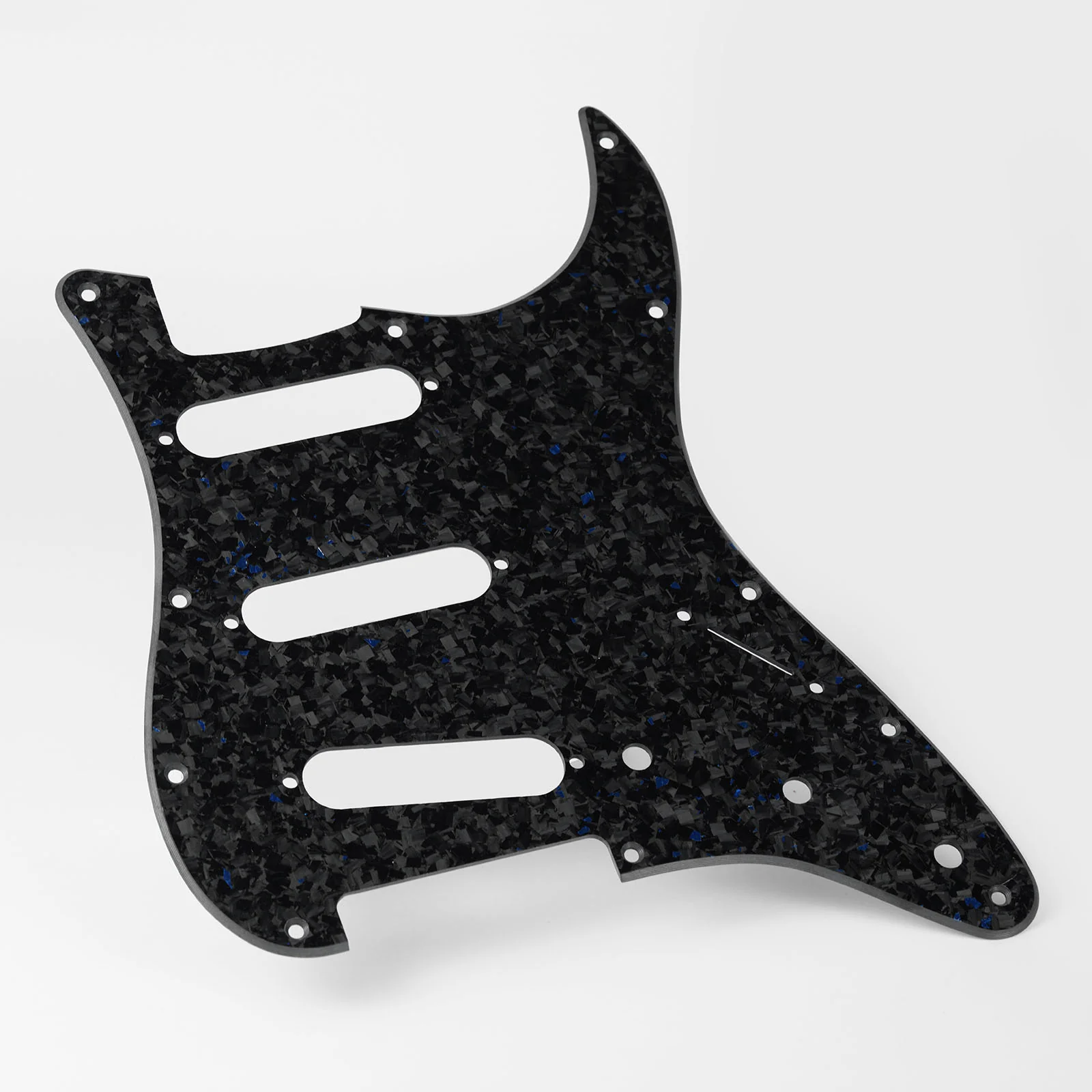

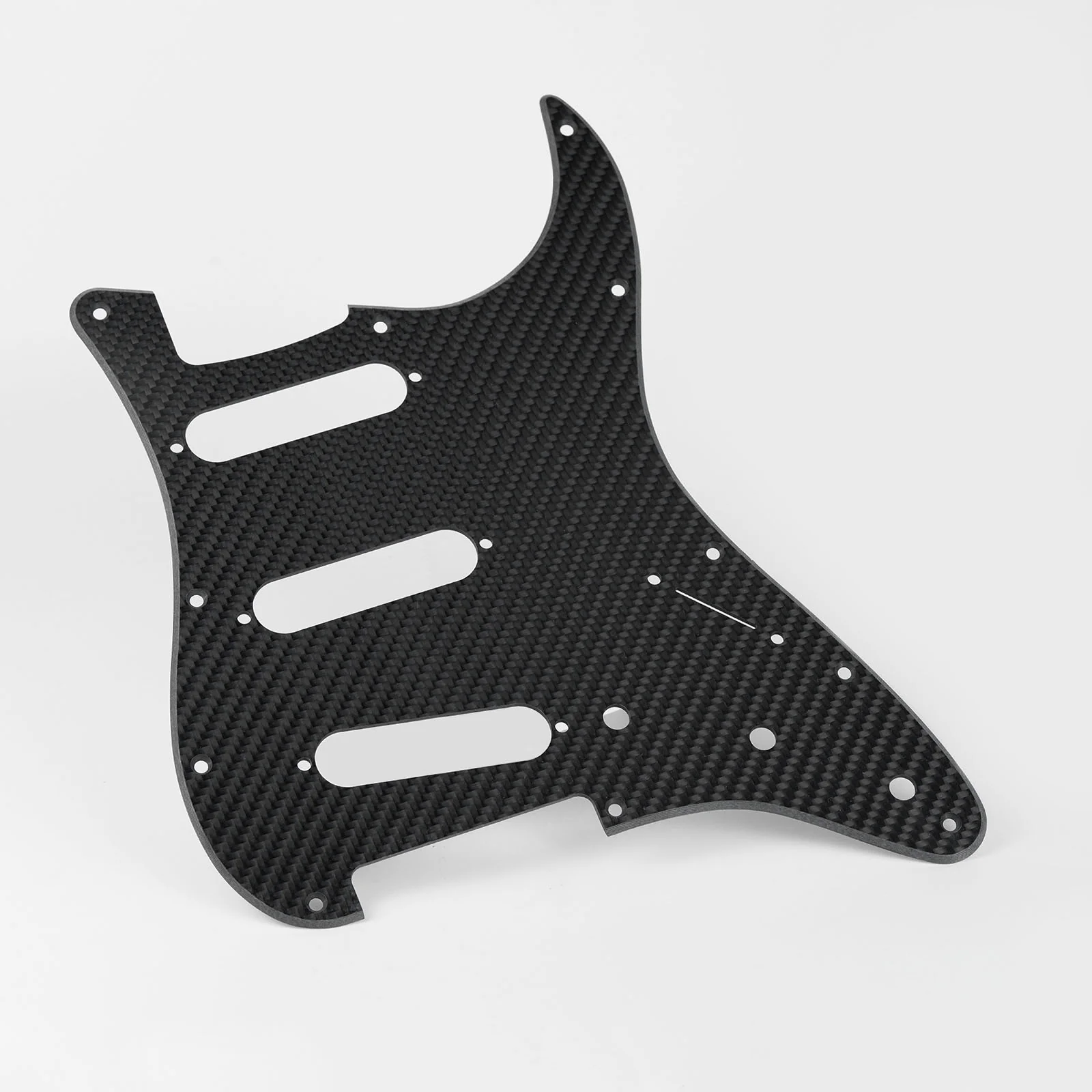

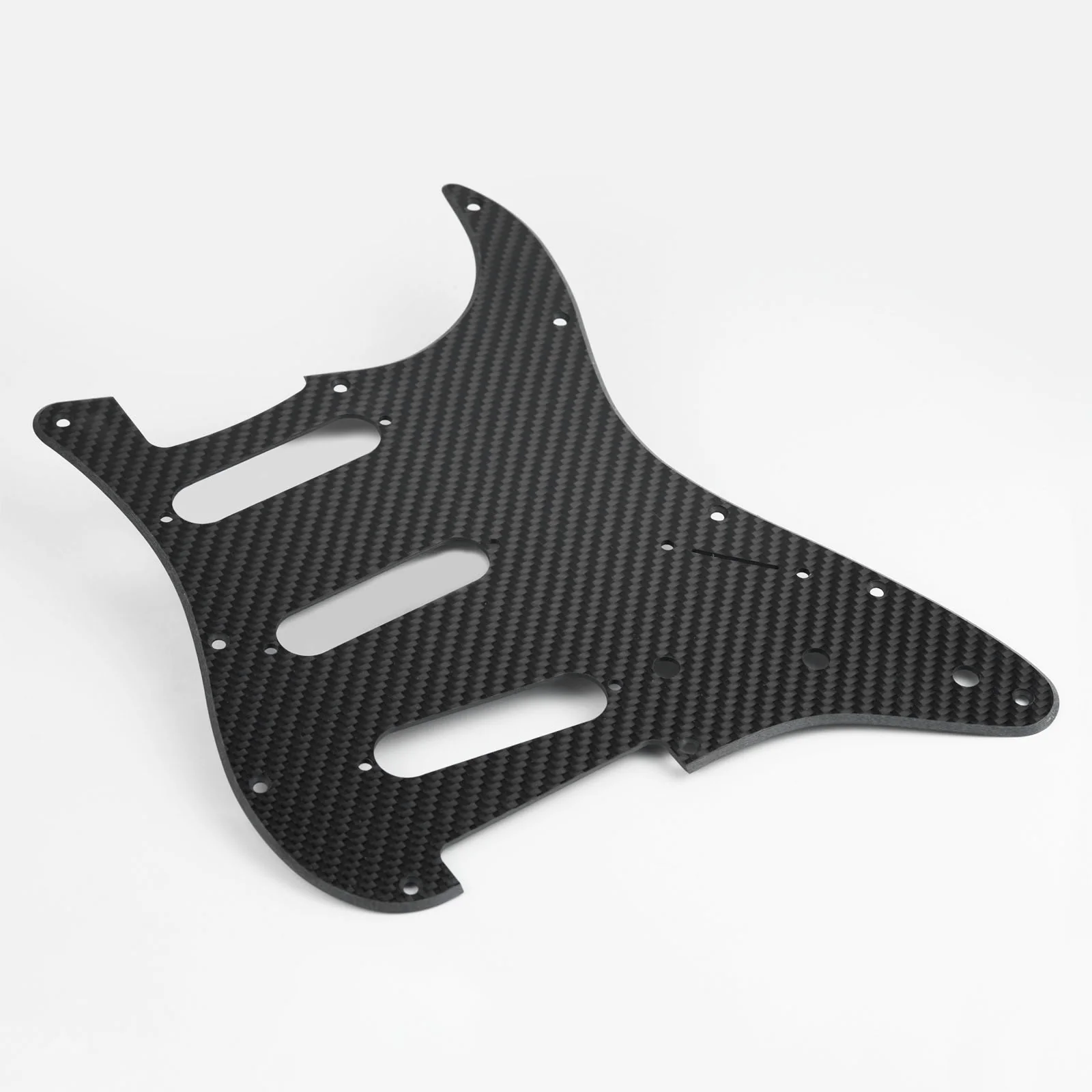

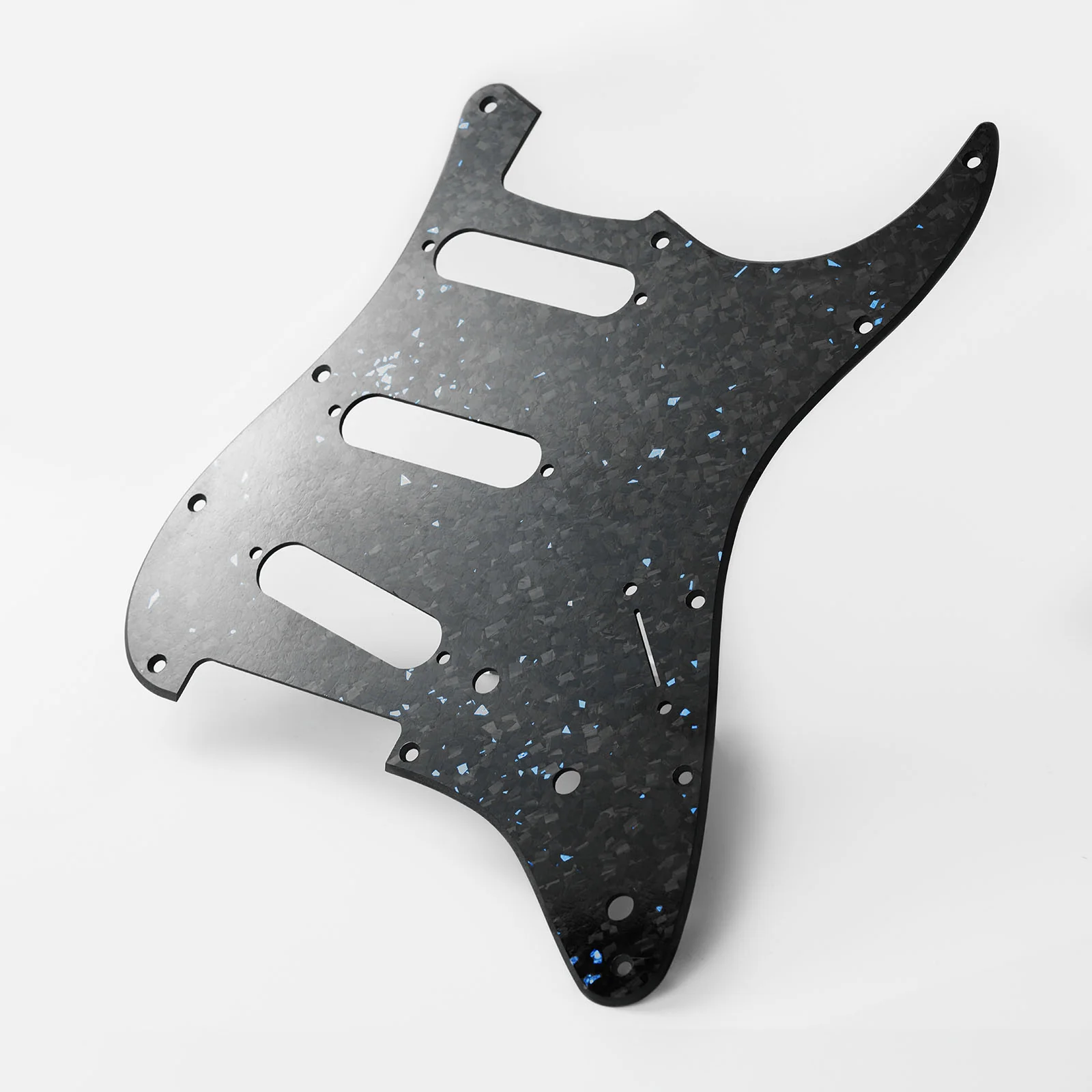

Upgrade your Strat-style electric guitar with a lightweight forged carbon fiber SSS pickguard. Designed for replacement, modification, and custom build projects, this 11-hole pickguard adds a modern custom look while keeping a classic Strat-style SSS layout.

Key Features

• Forged carbon fiber construction: Lightweight, rigid, and visually distinctive for a modern custom guitar build.
• SSS pickup configuration: Designed for three single-coil pickup layouts commonly used on Strat-style electric guitars.
• 11-hole mounting pattern: Suitable for replacement or custom installation where the existing screw-hole layout matches the pickguard dimensions.
• Right-handed Strat-style layout: Includes a slanted bridge pickup rout and control slot opening for standard right-handed Strat-style body layouts.
• Fitment reminder: Please compare the outline, screw-hole locations, pickup routs, bridge pickup angle, and control slot opening with your original pickguard before ordering.

Technical Specifications

SKU / Model	PG005T
Product Type	Pickguard
Suitable For	Strat-style electric guitar
Material	Forged carbon fiber
Color / Finish Options	Black, Blue, Red
Pickup Configuration	SSS
Orientation	Right-handed
Mounting Style	11-hole mounting
Overall Height	259.46 mm
Overall Width	185.8 mm
Upper Span	162.64 mm
Left Side Height	203.23 mm
Neck Pickup Rout	70.74 x 18.29 mm
Middle Pickup Rout	77.47 x 17.73 mm
Bridge Pickup Rout Length	77.47 mm
Bridge Pickup Angle	8°
Control Slot Opening	75.95 x 15.34 mm
Package Includes	1 x pickguard only

Compatibility Notes

Important: Pickguard screw holes and contours may vary between models. Please compare the dimensions with your original pickguard before ordering.

Package Includes

• Package includes the pickguard only.
• 1 x forged carbon fiber Strat-style SSS pickguard
• Not included: mounting screws, pickups, knobs, potentiometers, selector switch, wiring, or other installation hardware.

Installation Note

Before installation: Compare the product dimensions with your original part to confirm compatibility. Minor modification may be required depending on the guitar model, production year, or existing hardware.

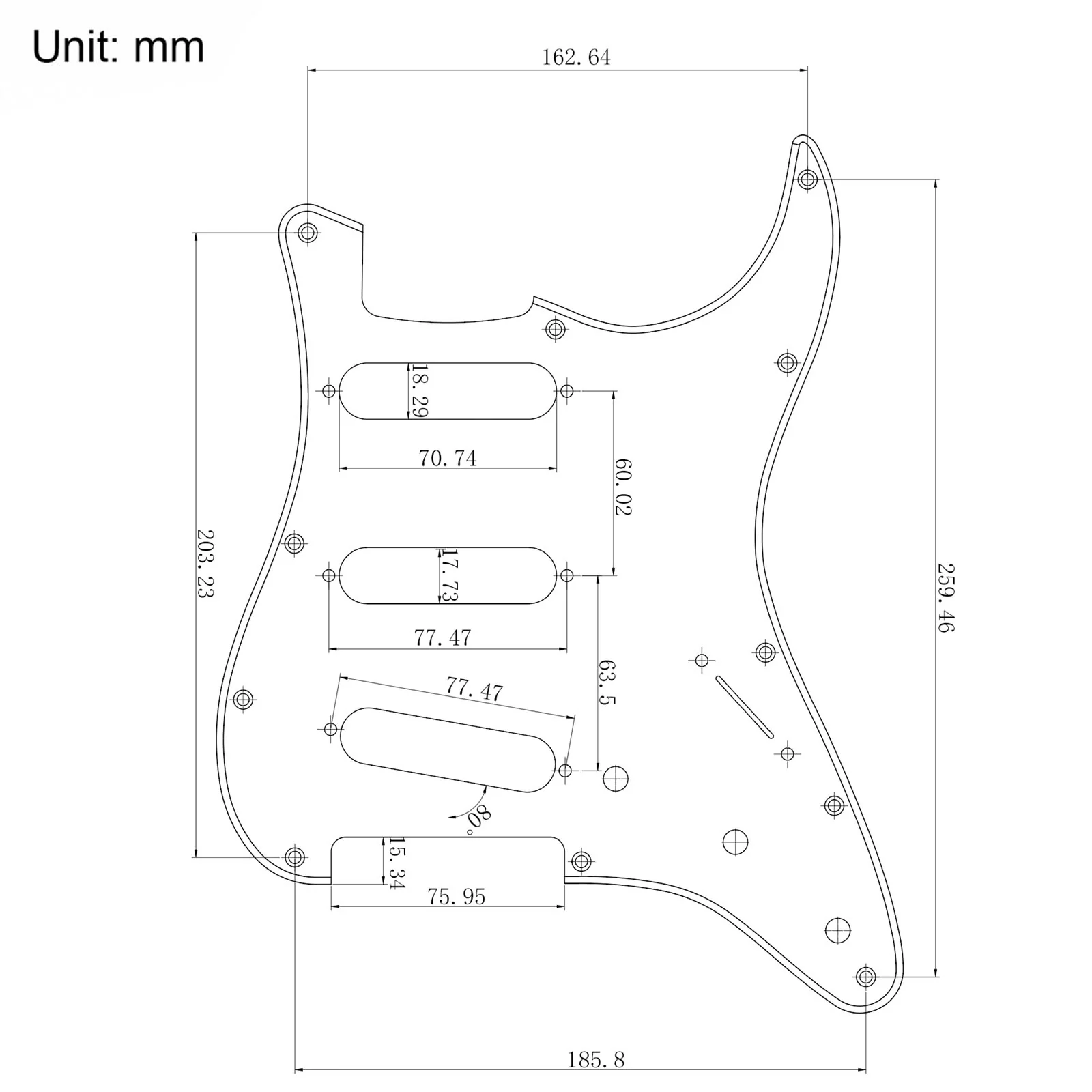

Size Reference

Important: Please refer to the size chart below and compare all dimensions with your original part before ordering.
