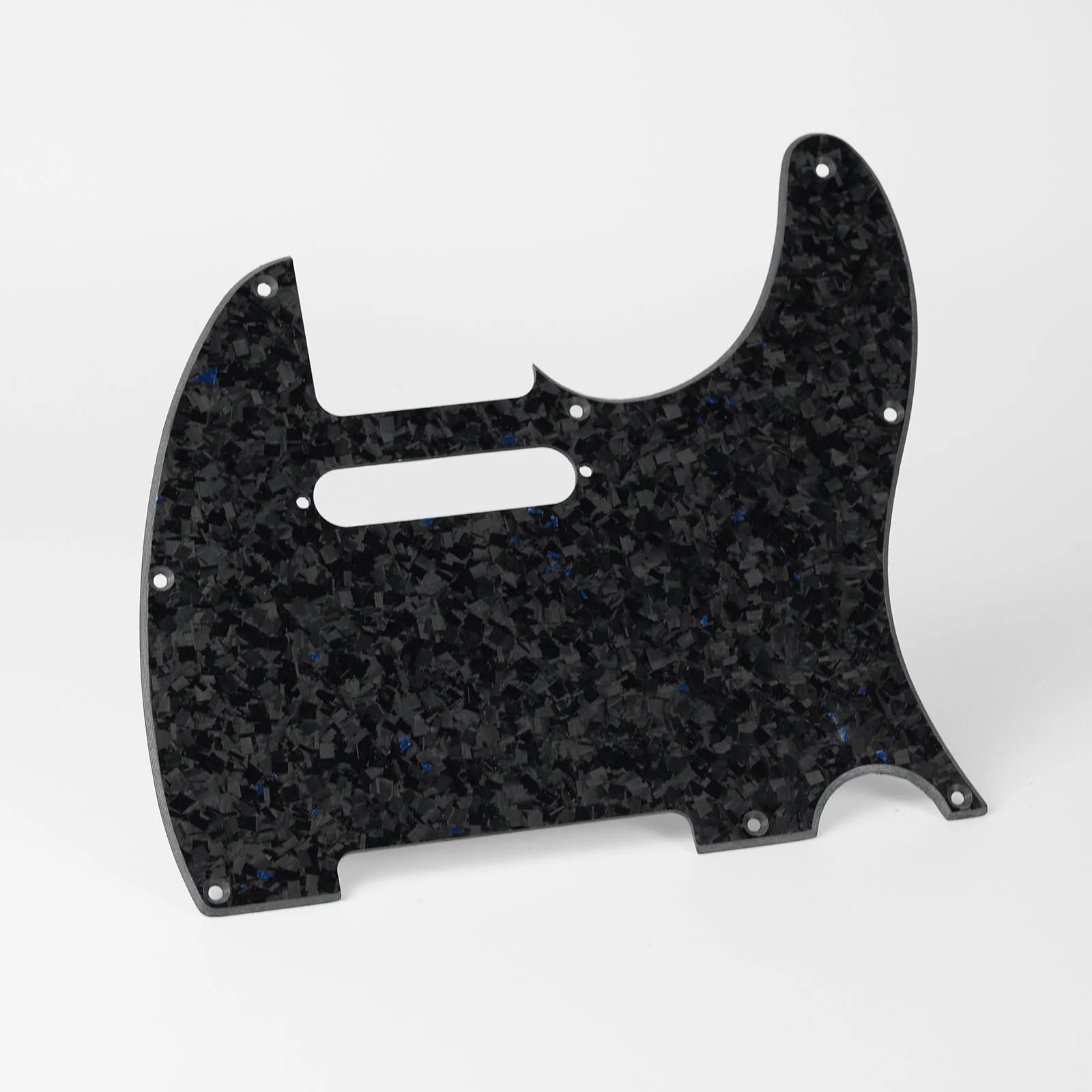

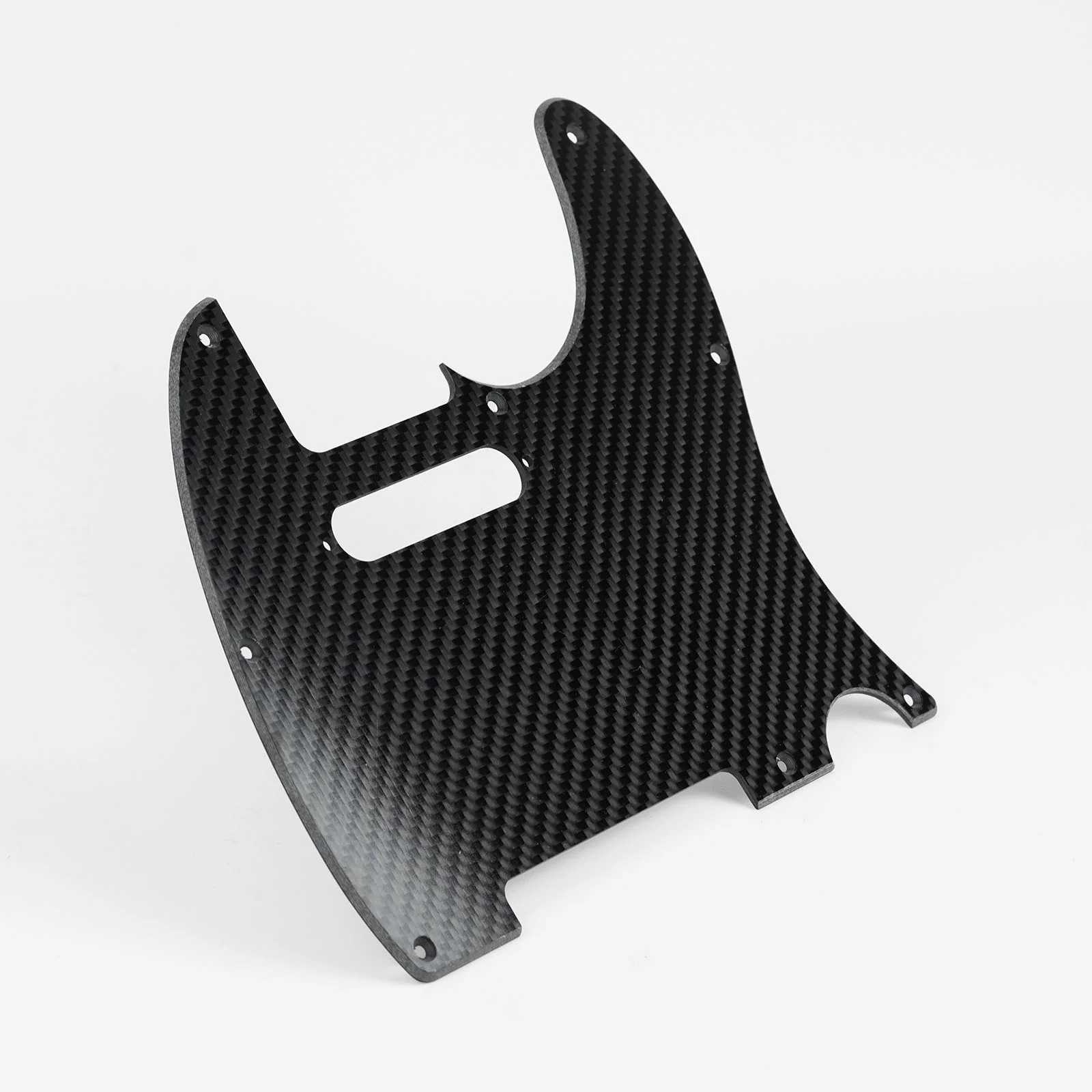

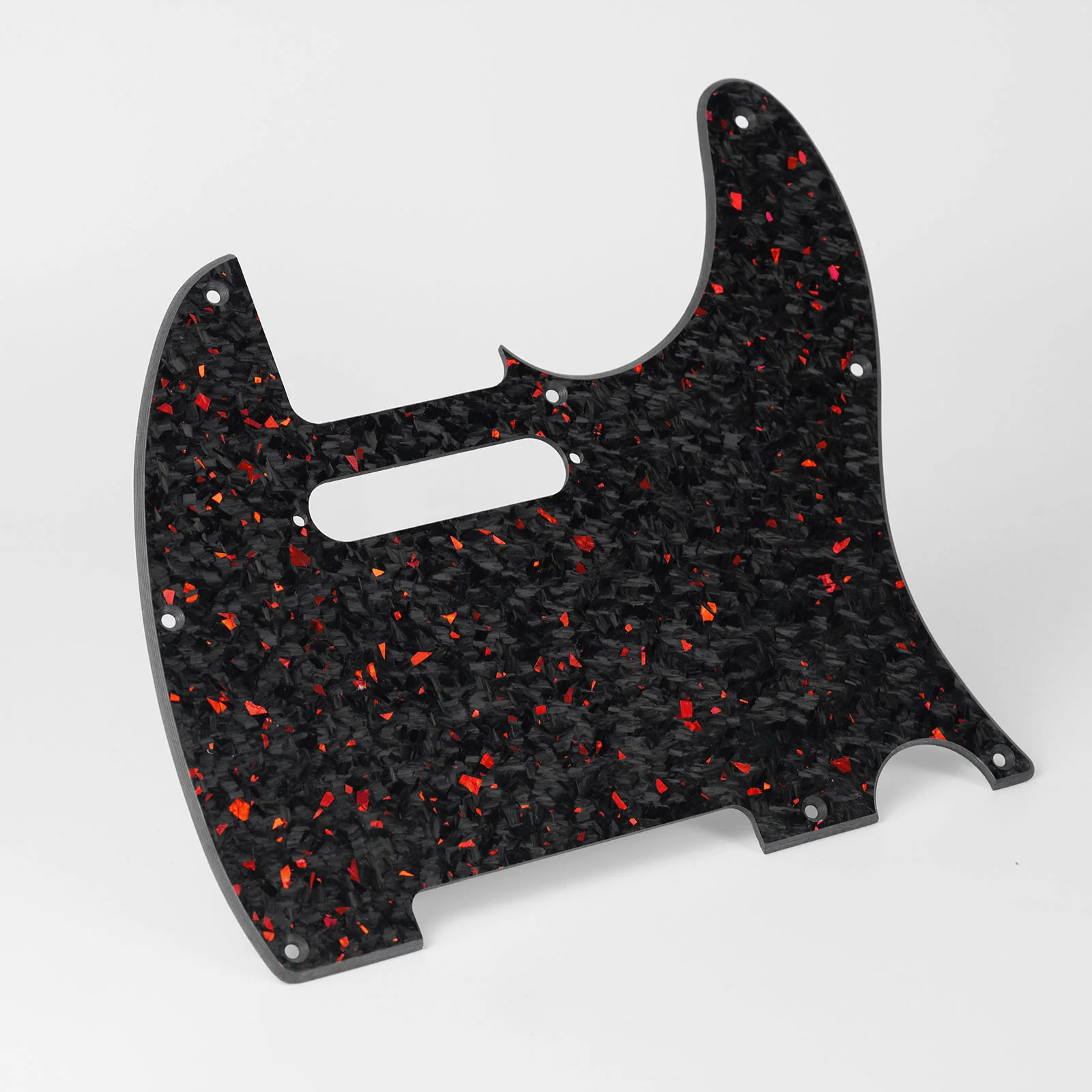

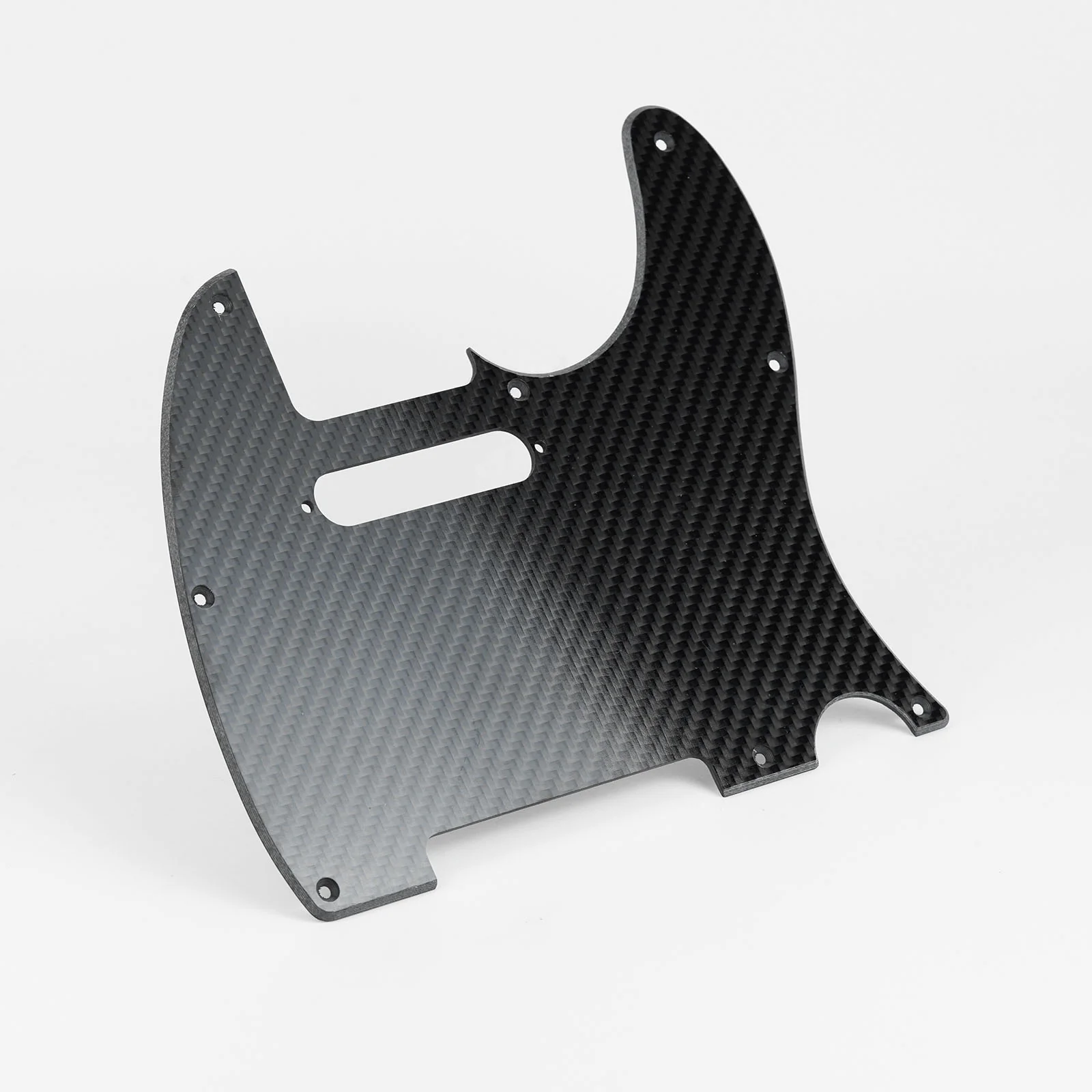

Upgrade your Tele-style electric guitar with a lightweight forged carbon fiber pickguard. Designed for replacement, modification, and custom build projects, this 8-hole pickguard adds a modern custom look while keeping a clean Tele-style layout.

Key Features

• Forged carbon fiber construction: Lightweight, rigid, and visually distinctive for a modern custom guitar build.
• Tele-style layout: Designed with a neck pickup opening, bridge cutout, and control plate clearance for Tele-style electric guitars.
• 8-hole mounting pattern: Suitable for replacement or custom installation where the existing screw-hole layout matches the pickguard dimensions.
• Right-handed orientation: Built for right-handed Tele-style body layouts.
• Fitment reminder: Please compare the outline, screw-hole locations, pickup opening, bridge cutout, and control plate clearance with your original pickguard before ordering.

Technical Specifications

SKU / Model	PG006T
Product Type	Pickguard
Suitable For	Tele-style electric guitar
Material	Forged carbon fiber
Color / Finish Options	Black, Blue, Red
Orientation	Right-handed
Mounting Style	8-hole mounting
Pickup Opening	Single neck pickup opening
Overall Width	185.35 mm
Overall Height	169.89 mm
Upper Span	149.5 mm
Left Side Height	152.29 mm
Neck Pocket Width	55.86 mm
Pickup Opening Size	66.17 x 15.37 mm
Pickup Opening Overall Width	71.6 mm
Bridge Cutout Width	87.83 mm
Control Cutout Width	32.3 mm
Package Includes	1 x pickguard only

Compatibility Notes

Important: Pickguard screw holes and contours may vary between models. Please compare the dimensions with your original pickguard before ordering.

Package Includes

• Package includes the pickguard only.
• 1 x forged carbon fiber Tele-style pickguard
• Not included: mounting screws, control plate, pickups, bridge, knobs, wiring, or other installation hardware.

Installation Note

Before installation: Compare the product dimensions with your original part to confirm compatibility. Minor modification may be required depending on the guitar model, production year, or existing hardware.

Size Reference

Important: Please refer to the size chart below and compare all dimensions with your original part before ordering.
