Upgrade your bolt-on guitar neck joint with a clean, plate-free mounting screw and bushing set. The Guyker GN-011 set is designed for custom builds, replacement projects, and neck mounting upgrades, now with new abalone shell inlay top options for a more decorative look.

Key Features

• Decorative abalone shell inlay options: Selected variants feature an abalone shell inlay top for a premium custom appearance.
• Bolt-on neck mounting design: Provides a clean alternative to a traditional neck plate for compatible bolt-on neck joints.

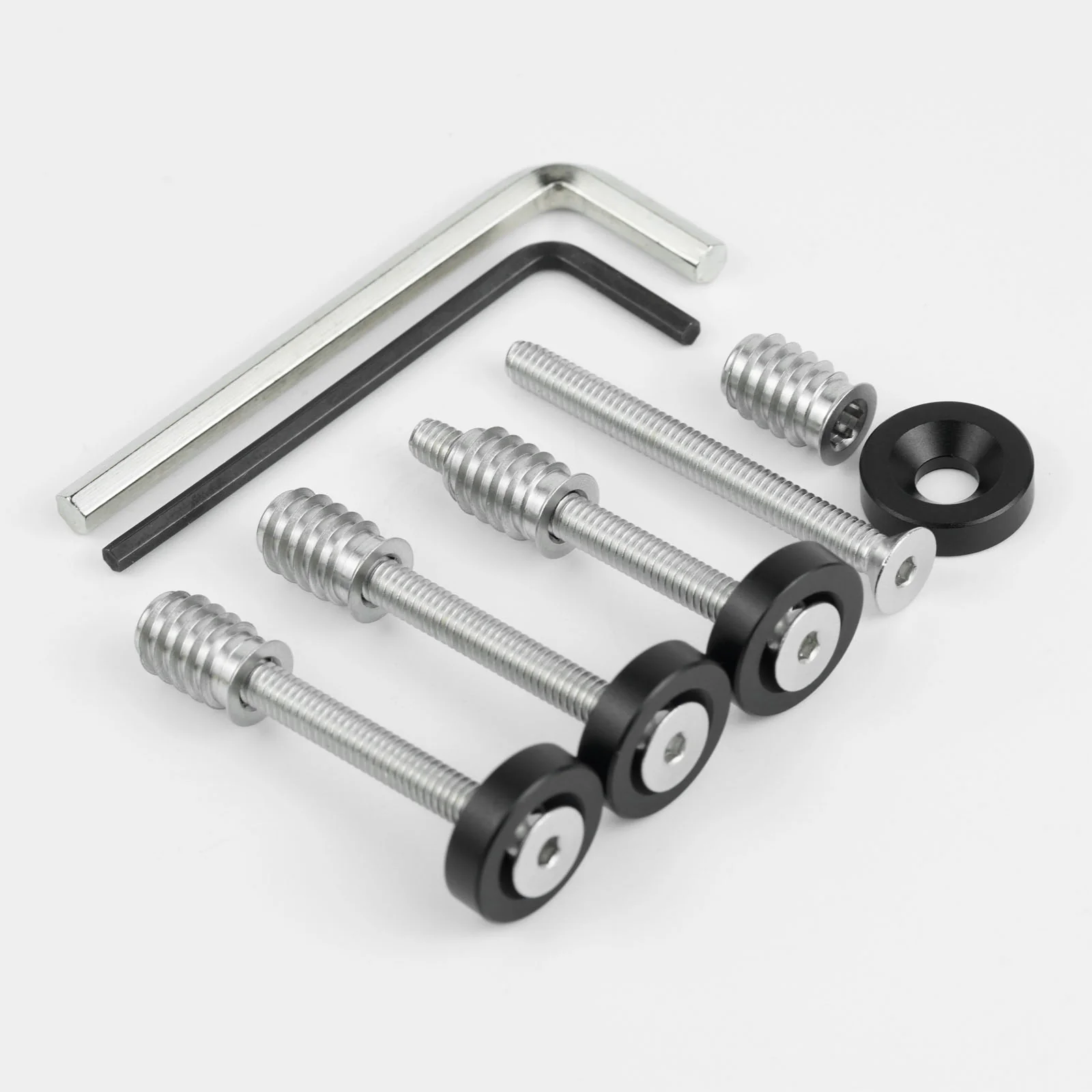

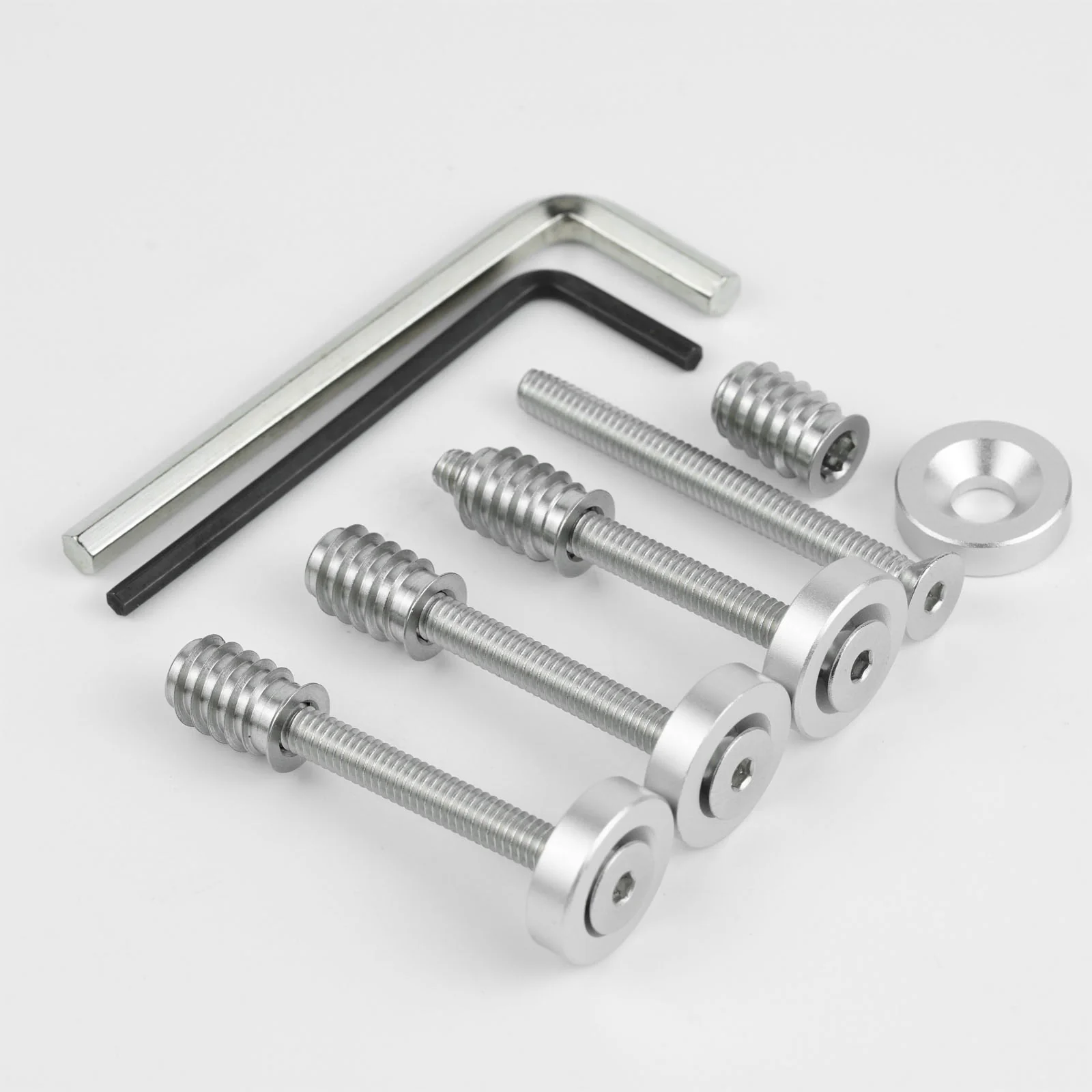

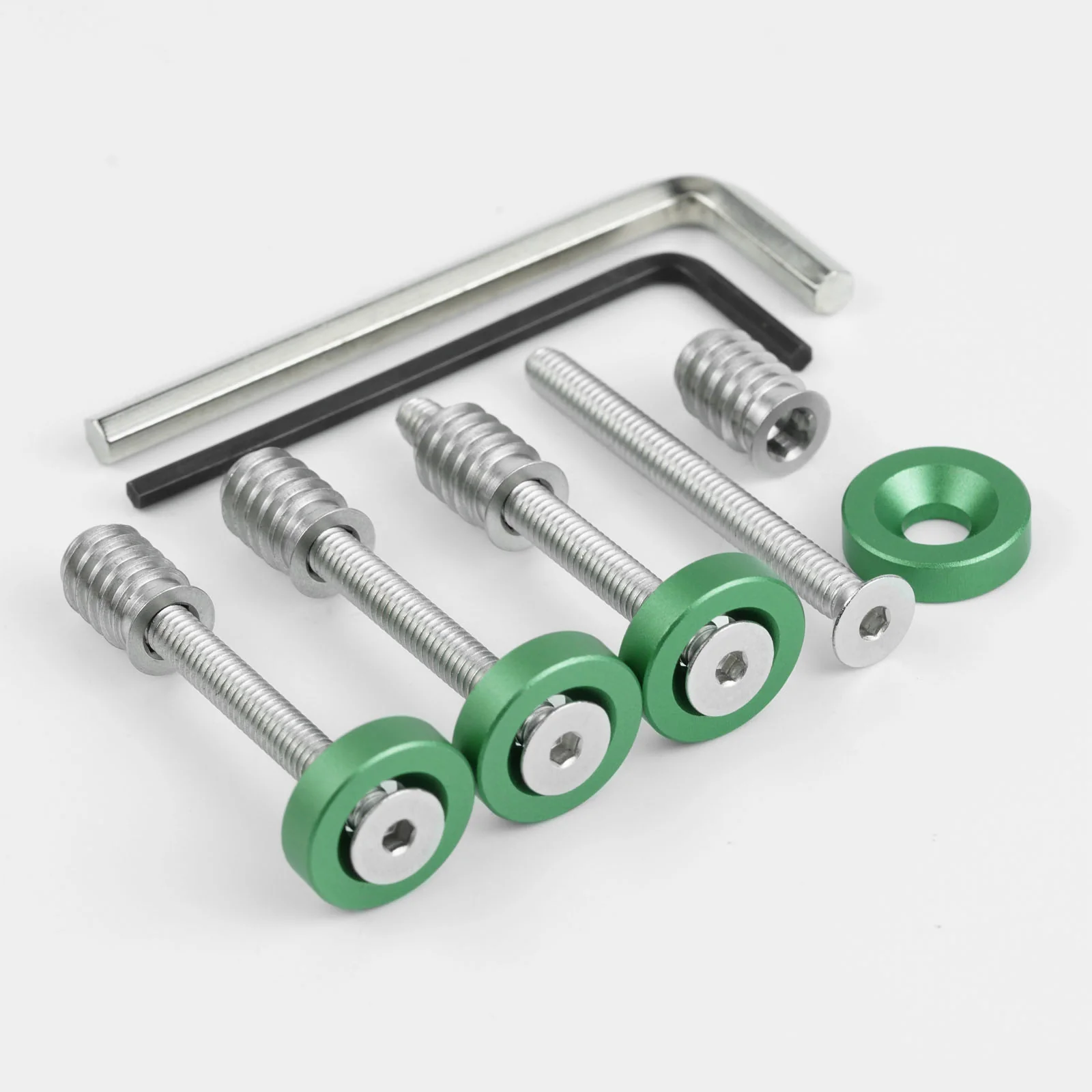

• Complete 4-piece mounting set: Includes neck mounting screws, matching bushings, decorative top caps, and Allen wrenches for installation.
• Multiple finish options: Available in standard solid finishes and new shell inlay decorative variants.
• Fitment reminder: Please confirm the thread size, screw length, top cap diameter, and bushing dimensions before ordering.

Technical Specifications

SKU / Model	GN-011
Product Type	Neck Mounting Screw & Bushing Set
Application	Bolt-on neck mounting / neck joint area
Suitable For	Electric guitar and bass bolt-on neck projects
Main Material	Aluminum alloy top caps, stainless steel screws
Top Decoration	Abalone shell inlay on selected variants

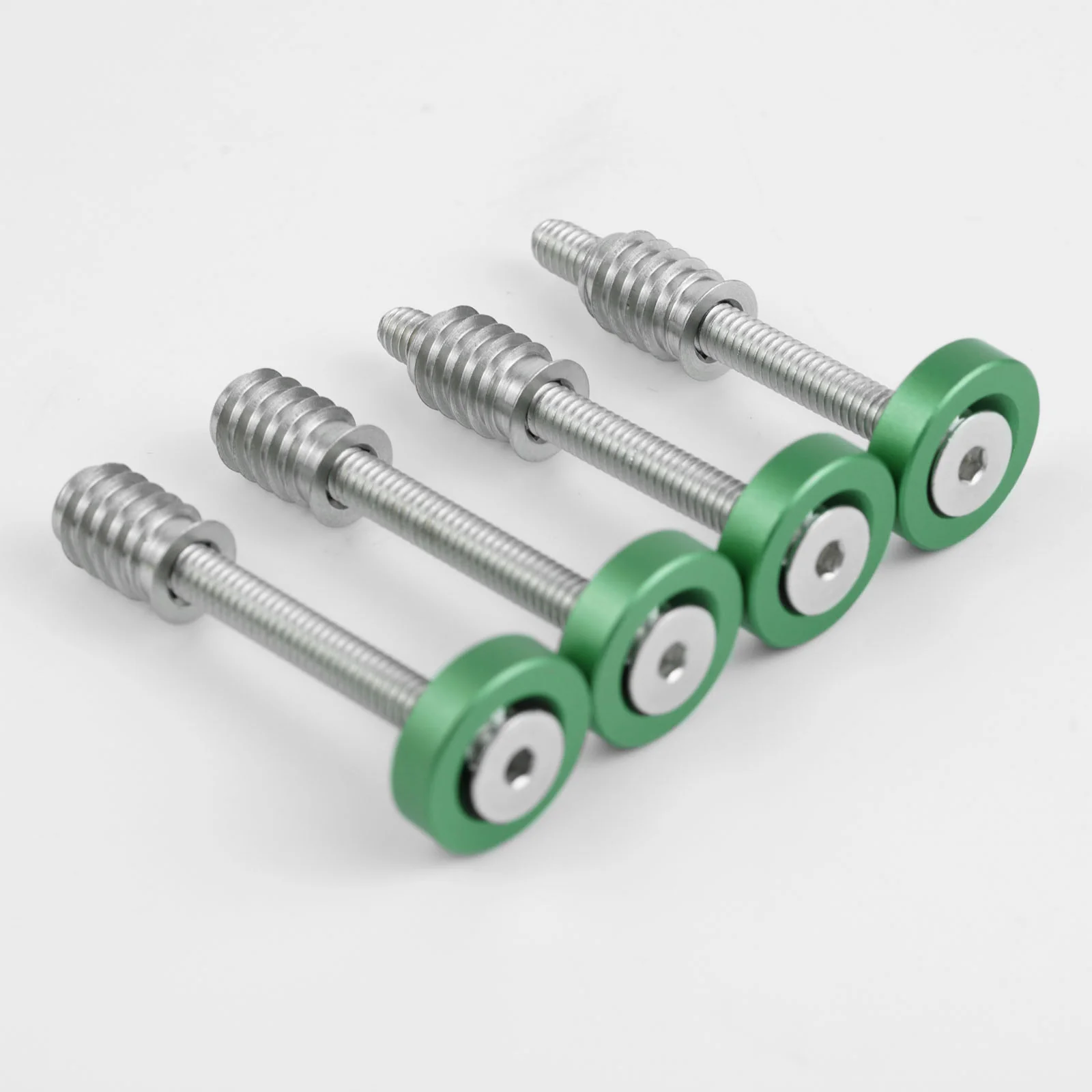

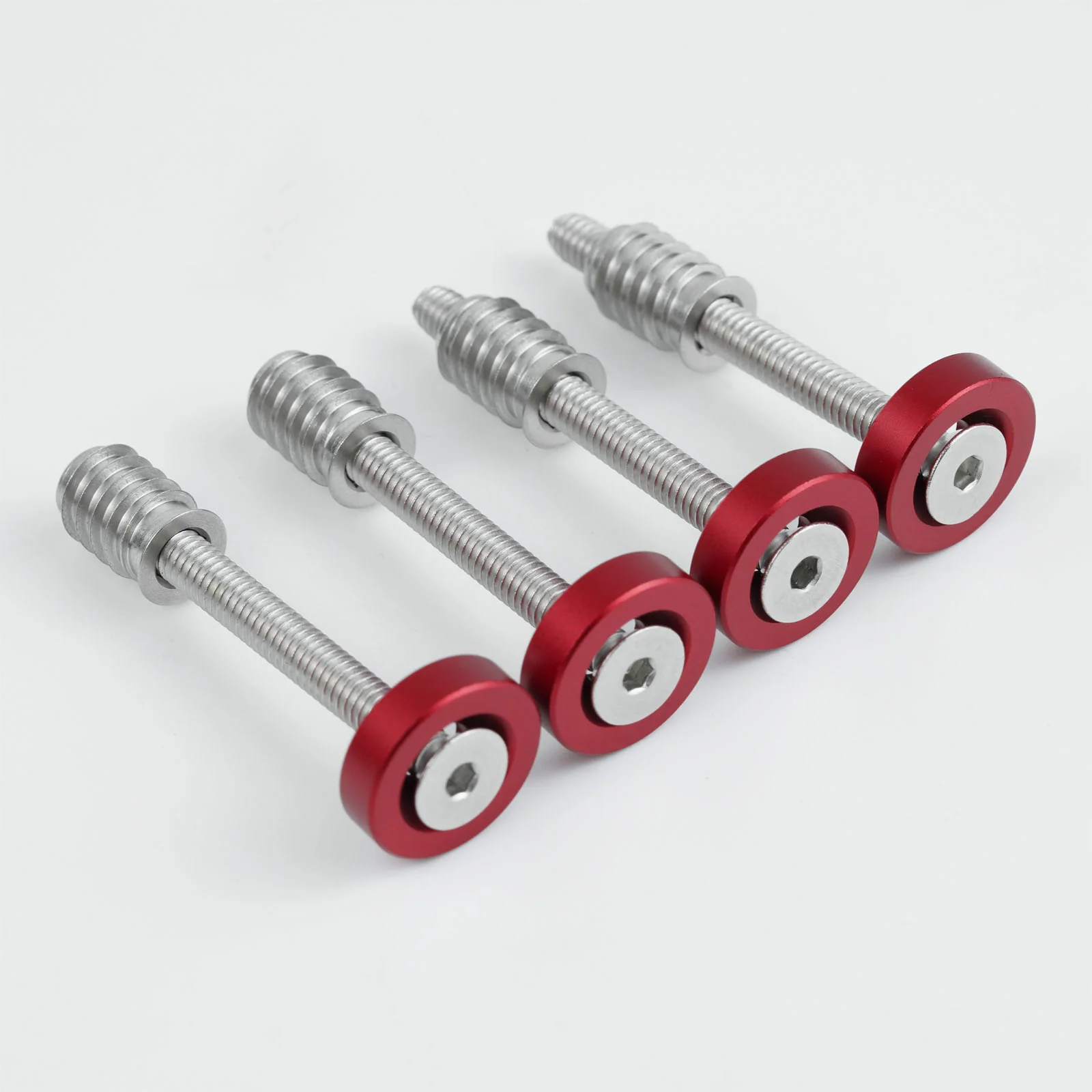

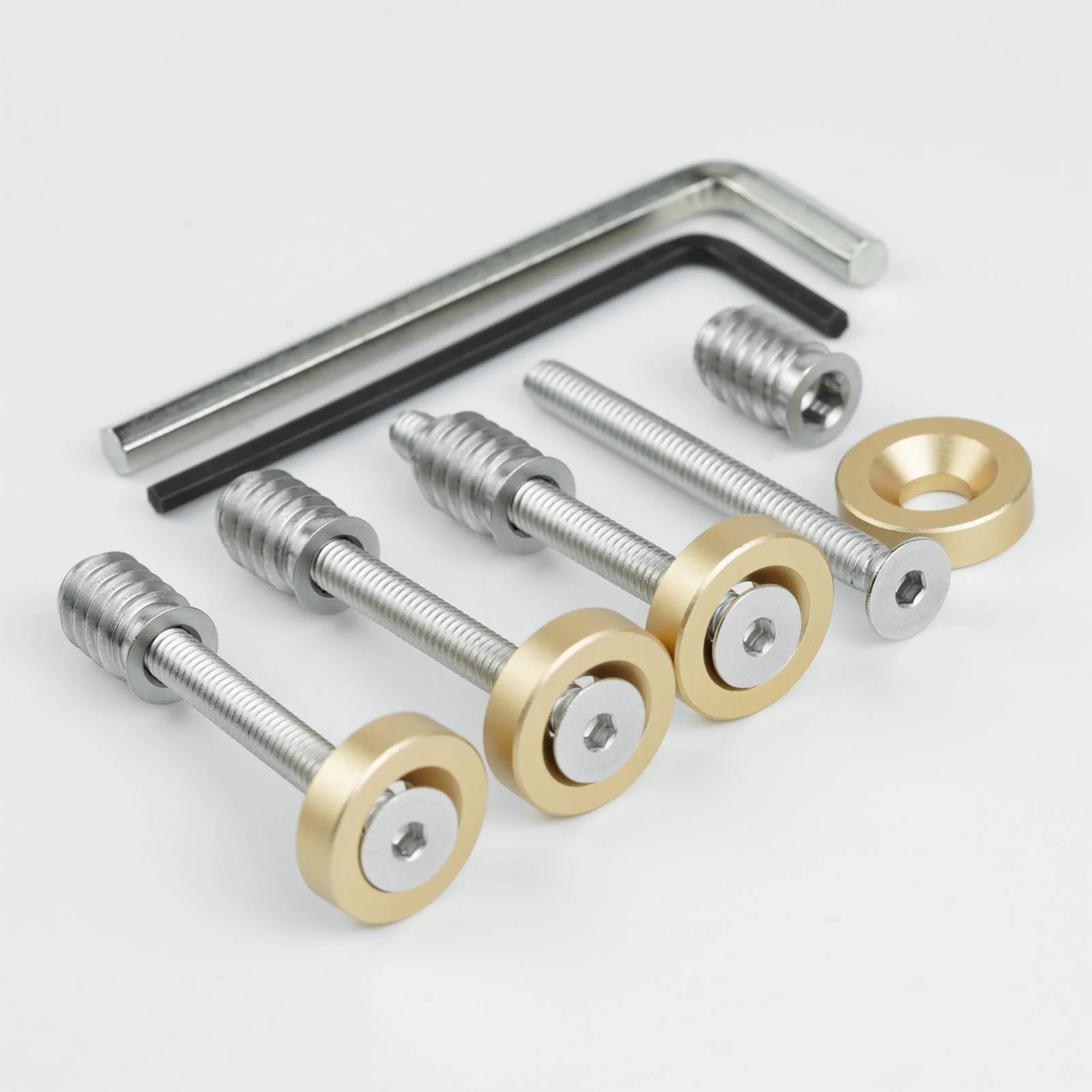

Color / Finish Options	Chrome, Black, Gold, Red, Green, Blue, Chrome with Abalone Shell Inlay, Gold with Abalone Shell Inlay, Black with Abalone Shell Inlay
Thread Size	8#-32
Top Diameter	15 mm
Top Thickness	4 mm
Overall Length	44.5 mm
Lower Mounting Piece Length	12 mm
Lower Mounting Piece Outer Diameter	8 mm
Lower Mounting Piece Inner Diameter	6.3 mm
Pack Quantity	1 Set / 4 PCS

Compatibility Notes

Important: Please check the measurements of your existing hardware before ordering. Guitar and bass neck joints may vary by model, production year, factory, and region.

Package Includes

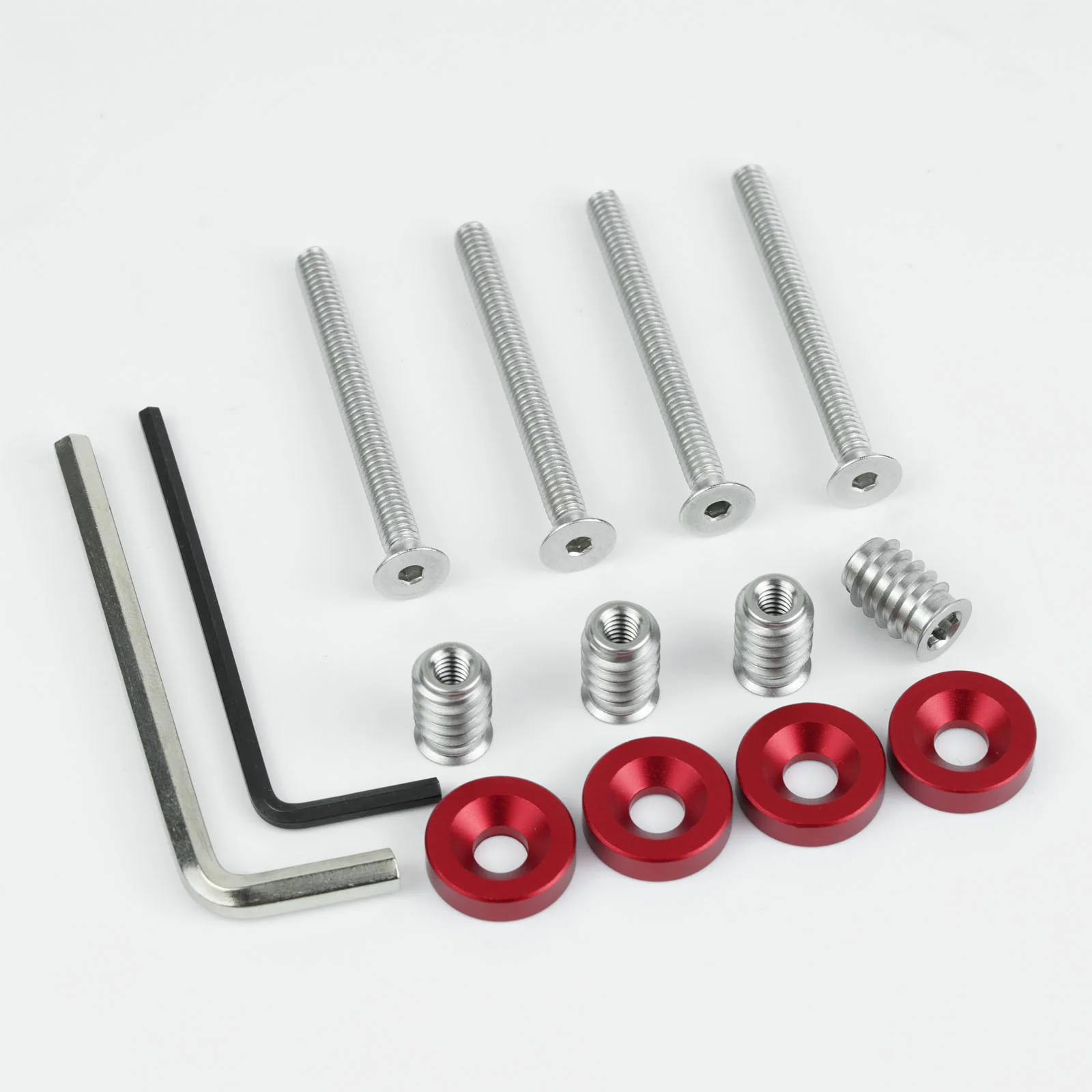

• Package includes one complete 4-piece neck mounting set.
• 4 x neck mounting screws
• 4 x matching mounting bushings
• 4 x decorative top caps
• 2 x Allen wrenches

Installation Note

Before installation: Compare the screw length, thread size, top cap diameter, and bushing dimensions with your original mounting hardware to confirm compatibility. Professional installation is recommended if drilling or body modification is required.

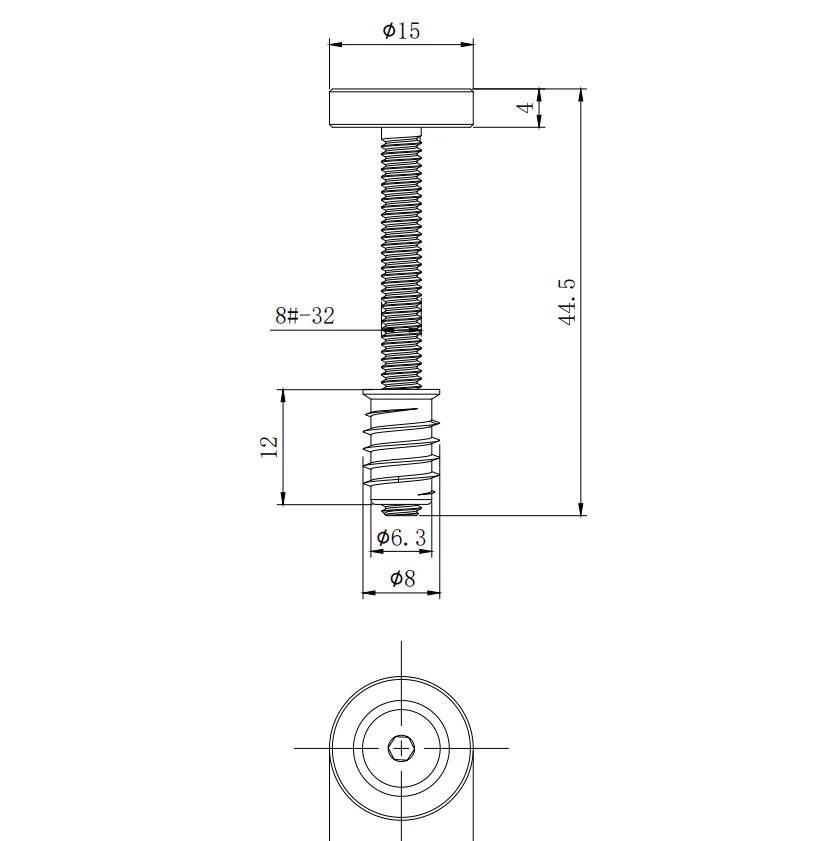

Size Reference

Important: Please keep the original size chart at the bottom of this product description. All listed dimensions must be checked against the original size chart before upload.
